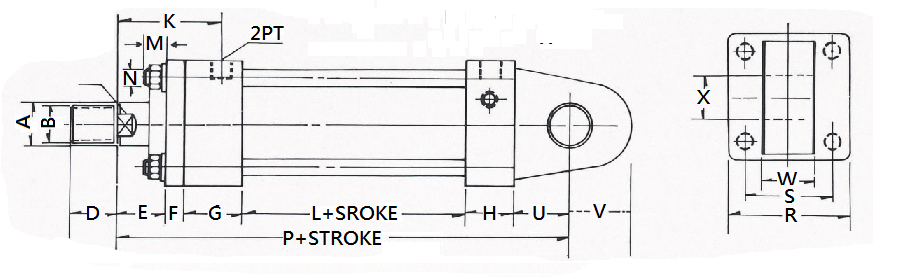

CA-TYPE

 　
WDOJCA
Bore 活塞桿 A B D E F G H K L M N F S PT P U V W X
40 C 20 M18P1.5 25 20 11 36 26 54 50 13 M10P1.5 65 45  1/4 181 38 16 25 18
B 25 M22P1.5 30
50 C 25 M22P1.5 30 30 13 42 34 68 50 13 M10P1.5 75 52  3/8 214 45 20 31.5 50
B 30 M26P1.5 35
63 C 30 M26P1.5 35 35 15 42 34 75 50 15 M12P1.75 90 63  3/8 239 63 30 40 30
B 35 M30P1.5 40
80 C 35 M30P1.5 40 35 18 46 40 79 50 17 M16P1.5 110 80  1/2 261 72 30 40 30
B 40 M35P1.5 45
100 C 45 M40P1.5 45 40 20 50 40 90 69 19 M18P1.5 135 98  1/2 303 84 40 50 40
B 50 M45P1.5 55
125 C 50 M45P1.5 55 45 24 58 48 104 69 21 M22P1.5 165 122  3/4 307 83 50 63 50
B 60 M50P2 65
150 C 60 M50P2 60 50 28 58 48 113 69 23 M24P1.5 195 148  3/4 333 80 63 80 63
B 70 M60P2 80
180 C 70 M60P2 110 55 33 68 58 127 90 25 M30P1.5 235 182 1" 404 100 80 100 80
B 80 M70P2 140
200 C 80 M70P2 120 55 37 68 58 137 90 27 M32P2.0 262 200 1" 423 115 90 125 90
B 100 M90P2 150
224 C 100 M90P2 140 60 41 68 58 146 90 29 M32P2.0 292 225 1" 442 125 100 125 100
B 110 M100P2 180
250 C 110 M100P2 150 65 46 68 58 169 90 31 M38P2.0 325 250 1 1/4 452 125 100 125 100
B 125 M110P2 195
