SD-TYPE

 　
WDOJFA

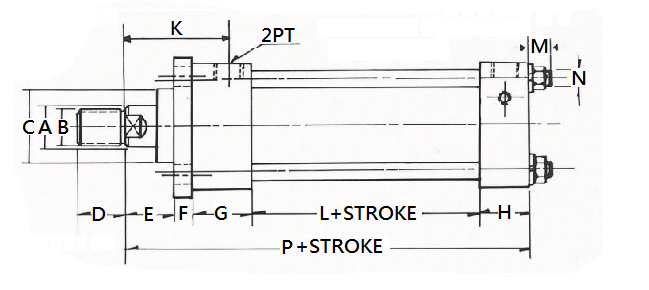

Bore 活塞桿 A B D E F G H K L M N F S PT I C U V W X Y
40 C 20 M18P1.5 25 20 11 36 26 54 50 13 M10P1.5 65 45  1/4 11 35 95 118 46 11 69
B 25 M22P1.5 30 40
50 C 25 M22P1.5 30 30 13 42 34 68 50 13 M10P1.5 75 52  3/8 13 40 115 145 58 13 85
B 30 M26P1.5 35 45
63 C 30 M26P1.5 35 35 15 42 34 75 50 15 M12P1.75 90 63  3/8 15 45 132 165 69 15 98
B 35 M30P1.5 40 50
80 C 35 M30P1.5 40 35 18 46 40 79 50 17 M16P1.5 110 80  1/2 18 50 155 190 87 18 118
B 40 M35P1.5 45 55
100 C 45 M40P1.5 45 40 20 50 40 90 69 19 M18P1.5 135 98  1/2 20 60 185 224 109 20 145
B 50 M45P1.5 55 65
125 C 50 M45P1.5 55 45 24 58 48 104 69 21 M22P1.5 165 122  3/4 24 65 224 272 132 24 175
B 60 M50P2 65 75
150 C 60 M50P2 60 50 28 58 48 113 69 23 M24P1.5 195 148  3/4 28 75 265 315 155 28 206
B 70 M60P2 80 85
180 C 70 M60P2 110 55 33 68 58 127 90 25 M30P1.5 235 182 1" 33 85 315 375 185 33 243
B 80 M70P2 140 100
200 C 80 M70P2 120 55 37 68 58 137 90 27 M32P2.0 262 200 1" 37 100 355 425 206 36 272
B 100 M90P2 150 120
224 C 100 M90P2 140 60 41 68 58 146 90 29 M32P2.0 292 225 1" 41 120 395 475 230 42 310
B 110 M100P2 180 130
250 C 110 M100P2 150 65 46 68 58 169 90 31 M38P2.0 325 250 1 1/4 46 130 425 515 250 45 335
B 125 M110P2 195 145
