TC-TYPE

 　
WDOJTC

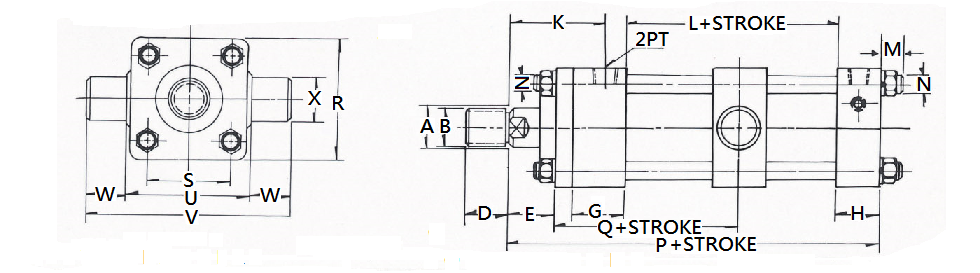

Bore 活塞桿 A B D E F G H K L M N F S PT P Q U V W X
40 C 20 M18P1.5 25 20 11 36 26 54 50 13 M10P1.5 65 45  1/4 143 72 69 109 20 20
B 25 M22P1.5 30
50 C 25 M22P1.5 30 30 13 42 34 68 50 13 M10P1.5 75 52  3/8 169 80 85 135 25 25
B 30 M26P1.5 35
63 C 30 M26P1.5 35 35 15 42 34 75 50 15 M12P1.75 90 63  3/8 176 82 98 161 31.5 31.5
B 35 M30P1.5 40
80 C 35 M30P1.5 40 35 18 46 40 79 50 17 M16P1.5 110 80  1/2 189 89 118 181 30 30
B 40 M35P1.5 45
100 C 45 M40P1.5 45 40 20 50 40 90 69 19 M18P1.5 135 98  1/2 219 105 145 225 40 40
B 50 M45P1.5 55
125 C 50 M45P1.5 55 45 24 58 48 104 69 21 M22P1.5 165 122  3/4 244 117 175 275 50 50
B 60 M50P2 65
150 C 60 M50P2 60 50 28 58 48 113 69 23 M24P1.5 195 148  3/4 253 121 206 332 63 63
B 70 M60P2 80
180 C 70 M60P2 110 55 33 68 58 127 90 25 M30P1.5 235 182 1" 294 141 243 403 80 80
B 80 M70P2 140
200 C 80 M70P2 120 55 37 68 58 137 90 27 M32P2.0 262 200 1" 298 145 272 452 90 90
B 100 M90P2 150
224 C 100 M90P2 140 60 41 68 58 146 90 29 M32P2.0 292 225 1" 307 149 300 500 100 100
B 110 M100P2 180
250 C 110 M100P2 150 65 46 68 58 169 90 31 M38P2.0 325 250 1 1/4 327 159 335 535 100 100
B 125 M110P2 195
