1/8"∼1/2" |
80℃以下70bar |
|
3/4"∼1" |
80℃以下50bar |
|
1"1/4"∼2" |
80℃以下35bar |
|
溫度範圍-20℃~180℃ |
|
（低溫-40℃~120℃可訂製） |
|
最大真空10-3TORR |
|
|

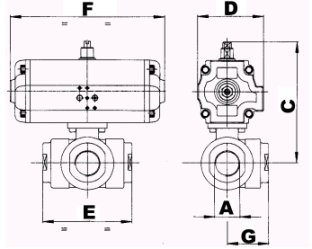

DN |
8 |
10 |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
|
二片式 |
三片式 |
|
A |
1/4" |
3/8" |
3/8" |
1/2" |
3/4" |
1" |
1"1/4 |
1"1/2 |
2" |
|
C |
128.5 |
118.5 |
128.5 |
118.5 |
127 |
168 |
180 |
210 |
225 |
|
D |
104 |
100.8 |
104 |
100.8 |
103.8 |
142 |
146.8 |
165.7 |
178.9 |
|
E |
45 |
45 |
45 |
45 |
45 |
71 |
71 |
80.5 |
80.5 |
|
F |
60.5 |
60.5 |
60.5 |
65.3 |
75.5 |
88.7 |
101.4 |
109.3 |
124 |
|
G |
110 |
110 |
110 |
110 |
110 |
139.5 |
139.5 |
163 |
163 |
|
氣缸 |
|
32 |
 |
|
|
32 |
|
|
|
32 |
|
|
|
32 |
|
|
|
32 |
|
|
|
52 |
|
|
|
52 |
|
|
|
63 |
|
|
|
63 |
|
|
|
排價 |
4860 |
4860 |
4950 |
4956 |
6100 |
6400 |
7380 |
8030 |
11000 |
|
