WDWK氣壓缸-SD型
|
WDWK氣壓缸-SD型 |
|||||||||||||

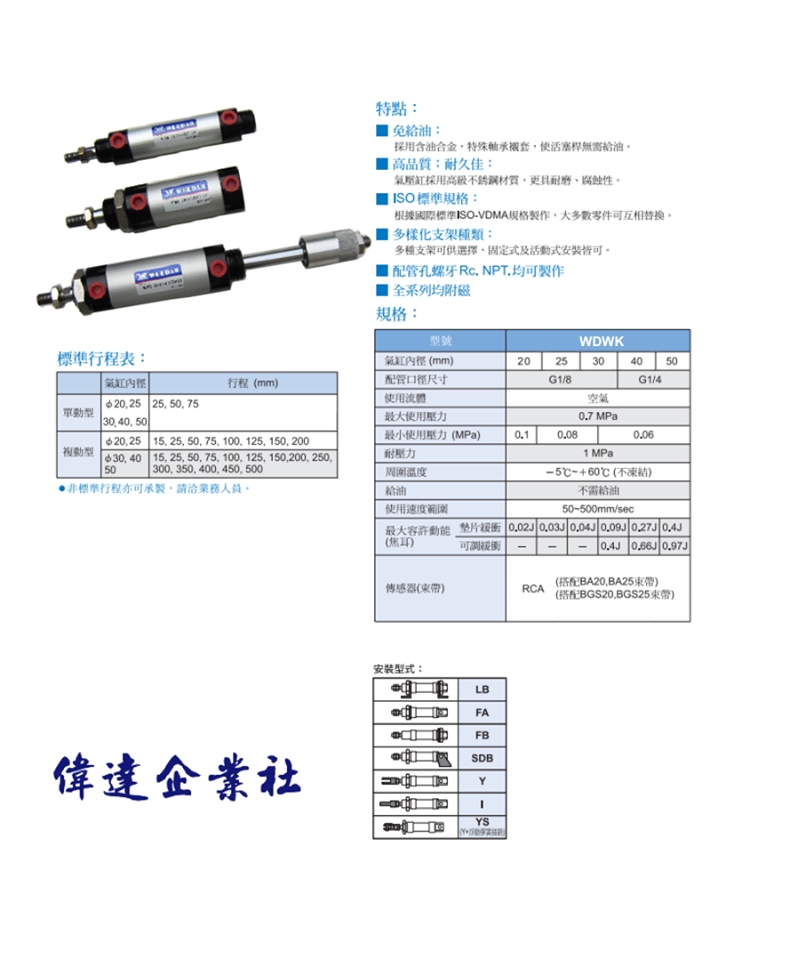

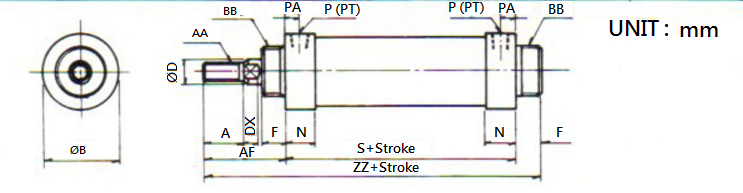

| Bore(mm) | A | AA | AF | B | BB | D | DX | F | N | P | PA | S | ZZ |
| 20 | 18 | M8 × 1.25 | 40 | 27 | M20 × 1.5 | 10 | 5 | 13 | 16 | 1/8 | 8 | 67 | 120 |
| 25 | 22 | M10 × 1.25 | 46 | 34 | M26 × 1.5 | 12 | 7 | 13 | 16 | 1/8 | 8 | 67 | 126 |
| 30 | 22 | M10 × 1.25 | 45 | 37 | M26 × 1.5 | 12 | 7 | 13 | 16 | 1/8 | 8 | 69 | 127 |
| 40 | 24 | M14 × 1.5 | 50 | 50 | M32 × 2.0 | 16 | 8 | 16 | 22 | 1/4 | 11 | 91 | 157 |
| 50 | 24 | M14 × 1.5 | 50 | 56 | M32 × 2.0 | 16 | 8 | 16 | 22 | 1/4 | 11 | 91 | 157 |
